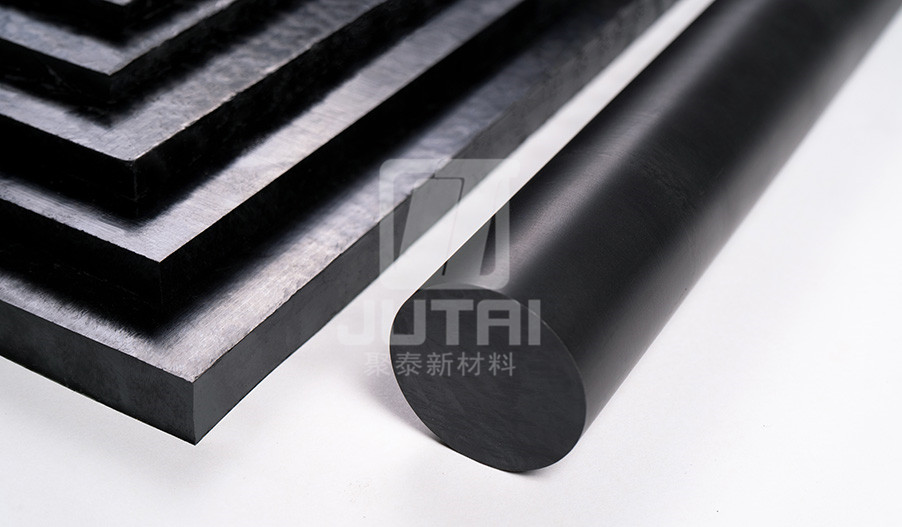

Wear-resistant Grade PEEK
JUTAIPEEK?WR01 is a type of Polymeric Profiles with high grade wear-resistance. It is made from 10% of
short-cut Carbon Fiber, 10% of PTFE Powder, 10% of Graphite Powder modified Polyetherether Ketone (PEEK)
(JUTAIPEEK?WR01 is VICTREXTM PEEK Polymers 450FC30 raw material extruded profile).
With low frictional coefficient and low wear rate, JUTAIPEEK?WR01 is a kind of bearing grade PEEK-based
composites that has self-lubricating property. It can be applied as Polymeric bearings, gears, and dynamic seals,
especially for the demand of low noise level, low vibration and contact to corrosion medium.
Product Features
JUTAIPEEK?WR01 type Wear-resistance Grade PEEK profiles:
● Outstanding sliding and wear performance.
● Excellent strength and stiffness.
● Excellent dimensional stability and low thermal expansion.
● High thermal endurance and the long service temperature is 250℃.
● Outstanding chemical-resistance.
Application Fields
JUTAIPEEK?WR01 type Wear-resistance Grade PEEK profiles can be applied:
—— Mechanical Engineering Industry；
—— Sealing Element Industry；
—— Automotive Industry.
Instructions for Use
Machined by Lathes or Milling Machine.?
Remove
surface heat-treatment aged layers and the thickness of
removal layer is 0.5-1mm.
Product Storage Instructions
Placed away from light, avoiding humid, and away from oily substance.
Packed with polymeric film when not use.
Product Technical Data
The performance of JUTAIPEEK
?WR01 series products is as follows:
|
Performance
|
Test Method
|
Unit
|
Standard
|
|
Color
|
Eye
|
/
|
black
|
|
Density
|
ISO?1183-1
|
g/cm3
|
1.43
|
|
Tensile Strength
|
ISO 527-2
|
MPa
|
≥75
|
|
Tensile Modulus
|
ISO 527-2
|
GPa
|
≥4.5
|
|
Elongation At Break
|
ISO 527-2
|
%
|
≥3
|
|
Charpy Impact Strength
|
ISO?179
|
KJ/m2
|
≥5.0
|
|
Flexural Strength
|
ISO?178
|
MPa
|
≥140
|
|
Flexural Modulus
|
ISO?178
|
GPa
|
≥5
|
|
Rockwell Hardness
|
ISO?2039-2
|
HRM
|
≥100
|
|
Melt Temperature
|
ISO?11357-3
|
℃
|
≥334
|
|
Thermal Conductivity
|
ISO?8302
|
W/(m?K)
|
≤0.5
|
|
Coefficient of Linear Thermal Expansion 20-100℃
|
ISO 11359-2
|
10-6/K
|
≤50
|
|
Long Service Temperature
|
UL 746B
|
℃
|
240
|
|
Heat Deflection Temperature
|
ISO?75-2
|
℃
|
≥260
|
|
Water Absorption （24h）
|
ISO?62
|
%
|
≤0.11
|
|
Flame Retardancy
|
UL?94
|
/
|
V-0
|
|
Frictional Coefficient
|
ASTM D3702
|
/
|
0.33
|
|
Wear Rate
|
mg/h
|
1.14
|
Notes: Frictional coefficient and wear rate were tested according to ASTM D3702, that is using thrust washer
testing machine. Rubbing pair is PEEK sample thrust washer and 45# steel washer, and the contact area is
1.29cm2, and the inner diameter of the PEEK sample is 25mm. The applied load is 0.35MPa and the rubbing
velocity is 2m/s.
