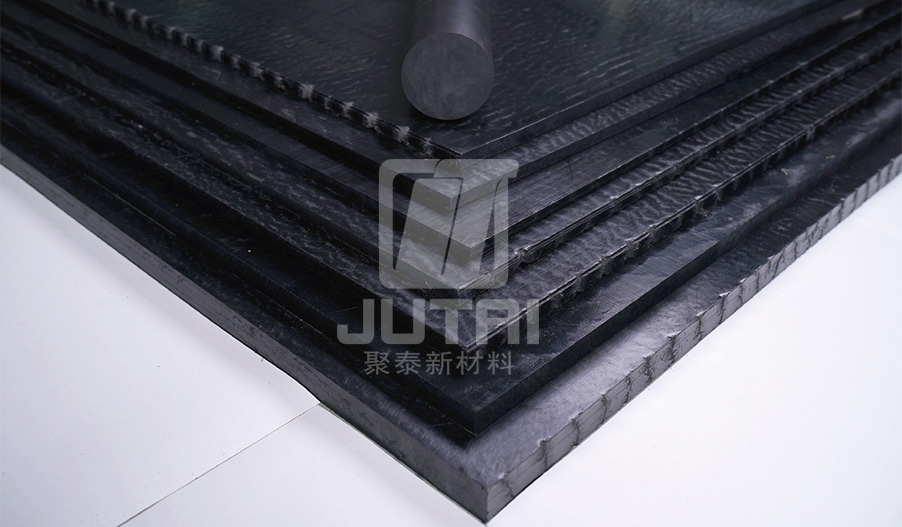

Carbon Filled PEEK
JUTAIPEEK?CF30 is a type of Polymeric Profiles made from 30% of short-cut Carbon Fiber Reinforced Polyetherether
Ketone (PEEK). The raw material of JUTAIPEEK?CF30V is British Victrex (Victrex PEEK Polymer
450CA30), The raw materials of JUTAIPEEK?CF30G are domestic raw materials. Compared to PEEK
reinforced by GF30, the HDT increases obviously, and it has better wear-resistance. In addition, it is electrical
and heat conducting.
This type of products can be applied in the operating condition that is need to bear larger mechanical stress and
wear rate in higher temperature, such as semiconductor production process, precision bearing, tubes and
components in chemical equipment.
Product Features
JUTAIPEEK?CF30 type Carbon Fiber Reinforced PEEK profiles:
● Good tensile performance, and Tensile Modulus=6GPa.
● Good flexural performance, and Flexural Modulus≥6GPa.
● Outstanding thermal mechanical bearing capacity, and HDT≥280℃.
● Outstanding wear-resistance.
● Good heat conducting property.
● Good electrical conducting property.
● Excellent dimensional stability and low thermal expansion.
● High thermal endurance and the long service temperature is 250℃.
Application Fields
JUTAIPEEK?CF30 type Carbon Fiber Reinforced PEEK profiles can be applied:
—— Mechanical Engineering Industry；
—— Semiconductor and Electronic Industry；
——?Chemical Industry and Petrochemical Industry.
Instructions for Use
Machined by Lathes or Milling Machine.
Remove
surface heat-treatment aged layers and the thickness
of removal layer is 0.5-1mm.
Product Storage Instructions
Placed away from light, avoiding humid, and away from oily substance.
Packed with polymeric film when not use.
Product Technical Data
The performance of JUTAIPEEK
?CF30 series products is as follows:
|
Performance
|
Test Method
|
Unit
|
CF30G
|
CF30V
|
|
Color
|
Eye
|
/
|
Black
|
Black
|
|
Density
|
ISO?1183-1
|
g/cm3
|
1.40
|
1.40
|
|
Tensile Strength
|
ISO 527-2
|
MPa
|
≥100
|
≥110
|
|
Tensile Modulus
|
ISO 527-2
|
GPa
|
≥5
|
≥6
|
|
Elongation At Break
|
ISO 527-2
|
%
|
≥5
|
≥7
|
|
Charpy Impact Strength
|
ISO?179
|
KJ/m2
|
≥3
|
≥7
|
|
Flexural Strength
|
ISO?178
|
MPa
|
≥195
|
≥200
|
|
Flexural Modulus
|
ISO?178
|
GPa
|
≥6
|
≥6.5
|
|
Rockwell Hardness
|
ISO?2039-2
|
HRM
|
≥100
|
≥100
|
|
Melt Temperature
|
ISO?11357-3
|
℃
|
≥334
|
≥334
|
|
Thermal Conductivity
|
ISO?8302
|
W/ (m?K)
|
0.9-1.0
|
0.9-1.0
|
|
Coefficient of Linear Thermal Expansion 20-100℃
|
ISO 11359-2
|
10-6/K
|
≤30
|
≤30
|
|
Long Service Temperature
|
UL 746B
|
℃
|
250
|
250
|
|
Heat Deflection Temperature
|
ISO?75-2
|
℃
|
≥280
|
≥280
|
|
Water Absorption （24h）
|
ISO?62
|
%
|
≤0.1
|
≤0.1
|
|
Flame Retardancy
|
UL?94
|
/
|
V-0
|
V-0
|
|
Volume Resistivity
|
IEC?61340-2-3
|
Ω?cm
|
102-106
|
102-106
|
